P191280

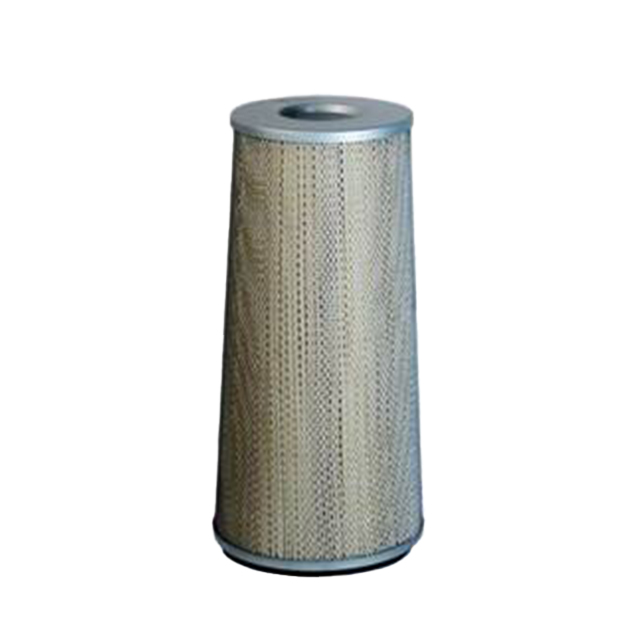

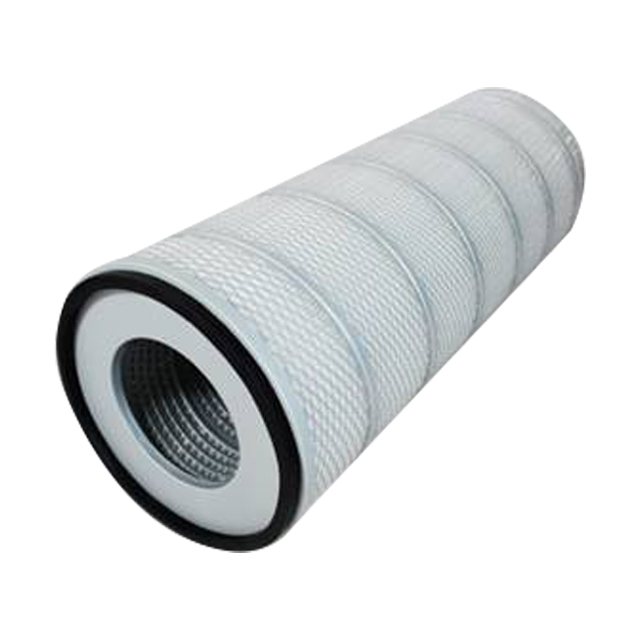

The data sheet of P191280 cylindrical filter

Filter description

Part number:  P191280

Product Type: cylindrical filter

Application: Gas Turbine, Industries filtration, Type of Pulsating System

Filtration Class:  F8 (EN 779)

Size: Nominal Diameter (outside) 324 mm , Length 660 mm

External Mechanical Protection Metal mesh with corrosion protection

Type of End Caps Metal end cap for fastening at one end, other end open

Rated flow: 1444.16m³/h;  Efficiency: > 99%

Certification: ISO9001

Brand: TR

Bursting resistance: 6.23kPa;

Ambient temperature: 5℃-45℃;

Humidity: 60%-99%;

Number of pleats: 395, pleat height: 49±1mm, width:

657mm, blanking length: 38710mm, filter area: 24;

After the filter cartridge glue is solidified, the inner and outer frameworks are evenly injected with glue 7 times to reinforce the filter paper.

According to ASHRAE 52.2:2007 standard

For 0.3um particles, the filtration efficiency is ≥75%;

Original resistance ≤200Pa;

The pressure difference of the dirty filter element ≤1000Pa;

Minimum efficiency level: 14;

Average weight efficiency (ASHRAE dust)> 99%;

According to EN 779:2012 standard

For 0.4um particles, the filtration efficiency is ≥90%;

Original resistance ≤200Pa;

The pressure difference of the dirty filter element is ≤1000Pa;

Efficiency level: F9;

Dust holding capacity> 1900g;
