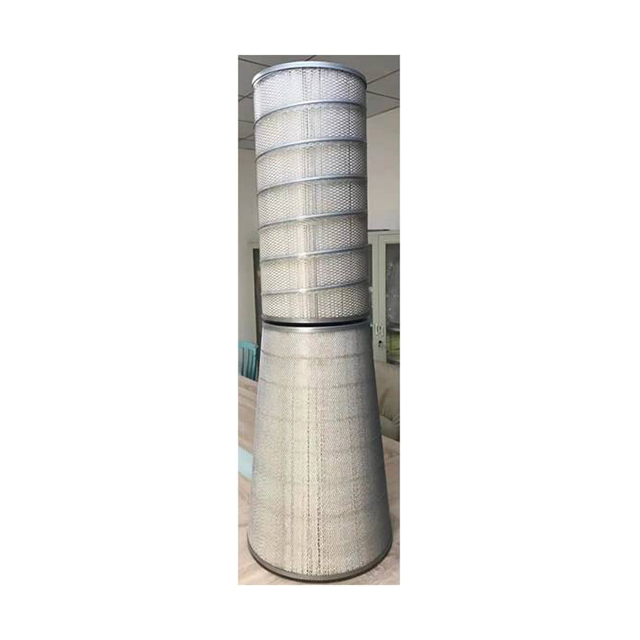

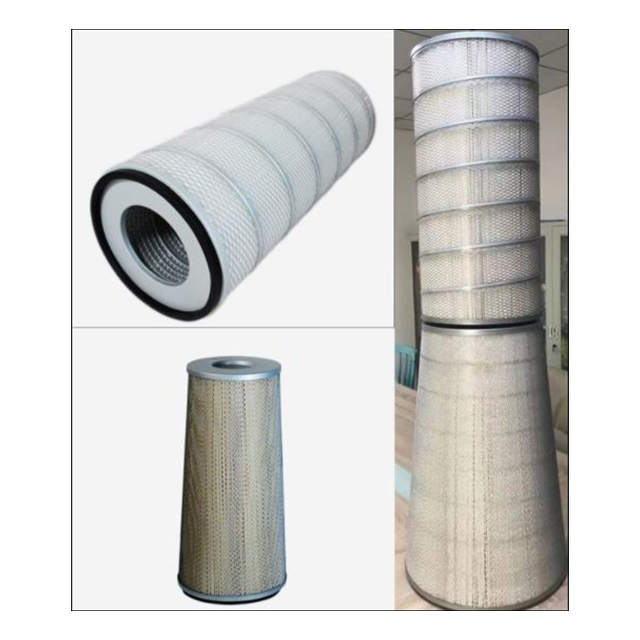

The data sheet of P191281 conical filter
Filter description
Part number: P191281
Product Type: Conical Filter
Application: Gas Turbine, Industries filtration, Type of Pulsating System
Filtration Class: F8 (EN 779)
Size: Nominal (outside) diameter 445 mm (base)
325 mm (end), Length 660 mm
External Mechanical Protection Metal mesh with corrosion protection
Endcaps: Both ends open
Rated flow: 1444.16m³/h; Efficiency: > 99%
Certification: ISO9001
Brand: TR
Bursting resistance: 6.23kPa;
Ambient temperature: 5℃-45℃;
Humidity: 60%-99%;
Number of pleats: 395, pleat height: 49±1mm, width:657mm, blanking length: 38710mm, filter area: 24;
After the filter cartridge glue is solidified, the inner and outer frameworks are evenly injected with glue 7 times to reinforce the filter paper.
According to ASHRAE 52.2:2007 standard
For 0.3um particles, the filtration efficiency is ≥75%;
Original resistance ≤200Pa;
The pressure difference of the dirty filter element ≤1000Pa;
Minimum efficiency level: 14;
Average weight efficiency (ASHRAE dust)> 99%;
According to EN 779:2012 standard
For 0.4um particles, the filtration efficiency is ≥90%;
Original resistance ≤200Pa;
The pressure difference of the dirty filter element is ≤1000Pa;
Efficiency level: F9;
Dust holding capacity> 1900g;
